LARGE DISPLAYS FOR EXTERNAL AREAS

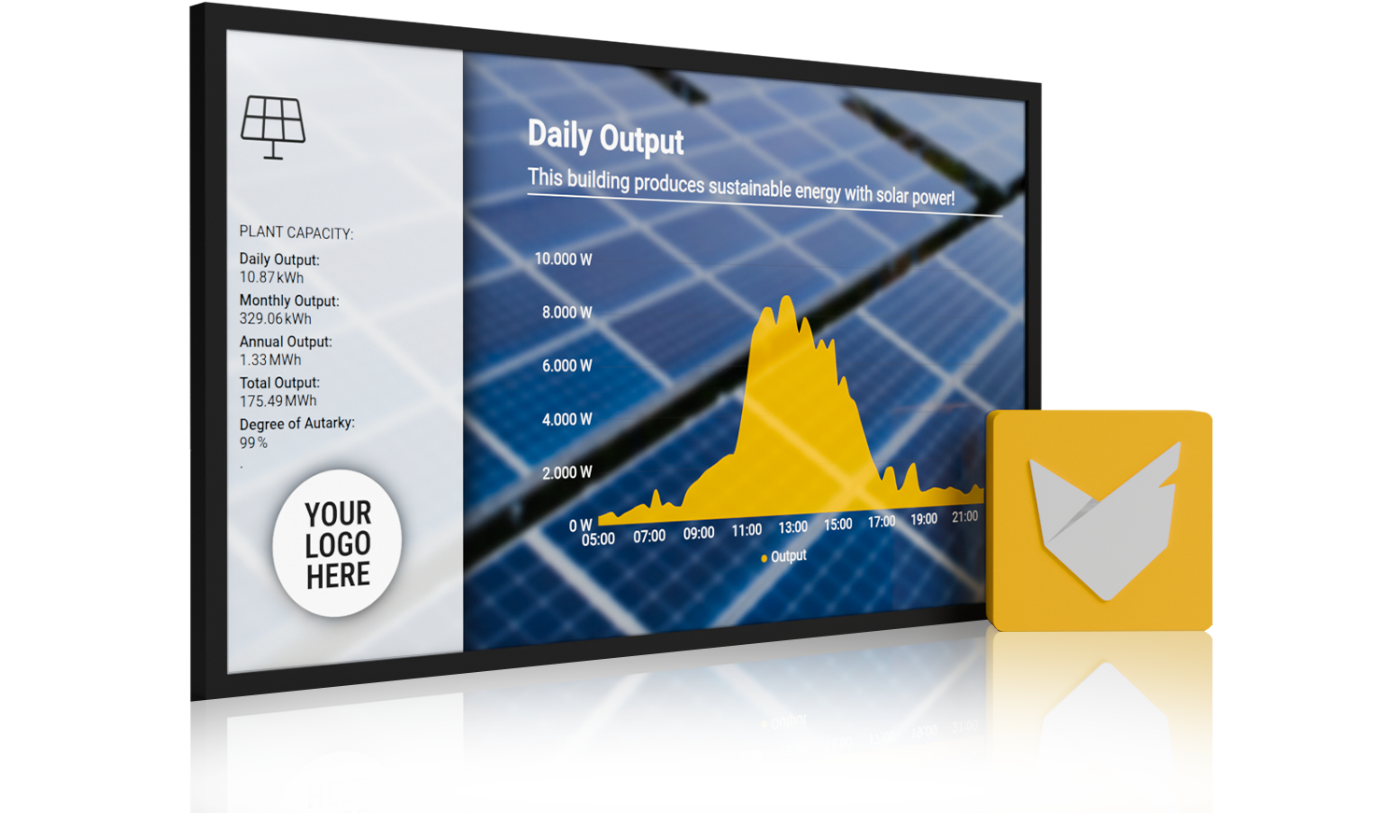

SOLARFOX® SF-600 SERIES

Areas of application

The new SF-600 series is equipped with a sturdy IP56 outdoor waterproof enclosure. A high-quality anti-reflection glass with vandalism protection, as well as a very high brightness for use in bright light conditions make the new Solarfox Outdoor series an eye-catcher. The display has a modern cooling system with a filterless heat exchanger.

Product scope

  • SAMSUNG high-brightness LED monitor
  • SOLARFOX® Connection Kit with control computer SC-2000 and software
  • 0 ° wall bracket with theft protection
  • Cables and accessories
  • Internet connection (LAN, WLAN)
  • Online management
  • individual content and information

Ideal for all weather conditions

Temperature resistant from -30 ° C to +50 ° C

Future at eye level | Expressive and innovative

The SF-600 series is designed for outdoor use and especially for use in bright daylight environment. For this purpose, the devices have a very bright panel, which adapts to the ambient brightness. An anti-reflective coating also allows viewing with polarized sunglasses.

The monitor can be used directly in the field without further protection. The monitors have a sturdy vandalism protected front glass and a sturdy frame. In this way, external influences of up to 20 joules can hardly affect the display.

The displays are suitable for 24/7 use, withstand outside temperatures of -30 ° to + 50 ° and are protected against ingress of water and dust (IP56 classification). The filterless and patented cooling system regulates itself automatically. A crisp image reproduction in intense light conditions enables a high contrast rate of 5,000: 1 and a brightness value of up to 2,500 dc / m² (TÜV-certified image quality). A brightness sensor adjusts the screen brightness to any condition, ensuring optimum energy and reading conditions.

Highlights

  • IP56 certification
  • Temperature resistant from -30 ° C to +50 ° C
  • High brightness: 2,500 cd / m²
  • Contrast: 5000: 1
  • High quality SAMSUNG technology
  • Automatic brightness sensor
  • Operating time 24/7 or timer function
  • Sturdy housing and vandalism protection
  • Anti-reflection glass
  • Filterless and low-maintenance heating and cooling system
  • Small case depth of only 8.5 cm
Solarfox-SF-600 Highlights

Compelling image motifs and colors for outstanding visibility

The content of the displays is easy to read even in bright light conditions. Depending on the ambient conditions, the display adjusts the brightness automatically. In this way, the display can even be mounted with a South or West orientation without problems. Due to the innovative Magic glass, the reflections are significantly reduced.

IK 10 Certification for sturdy protection against vandalism

Thanks to the advanced and 5mm thick, hardened Magic glass  a particularly high level of protection can be achieved. The glass is IK-10 certified (European level of impact resistance), which has the maximum level of strength and sturdiness of this international certification. In addition, a gap between the Magic Glass and the LCD panel prevents the panel from breaking if the protective glass should break. (* The IK Rating indicates on a scale of 0 - 10 the level of resistance to external force, with 10 indicating the highest level of protection, IK10 rating according to IEC 62262 Norm2)

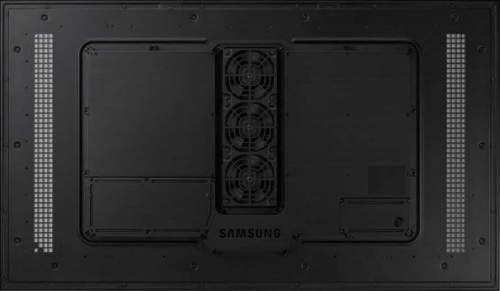

A self-cooling system that needs neither a filter nor maintenance

The models of the SF-600 series have a modern cooling system with heat exchanger, which is supported by an advanced thermal control function. The filterless solution also favors overall efficiency and reduces maintenance and costs. The system revolutionizes the previous housing design and eliminates the need for thick metal and climate enclosures, which are usually fitted with LED monitors

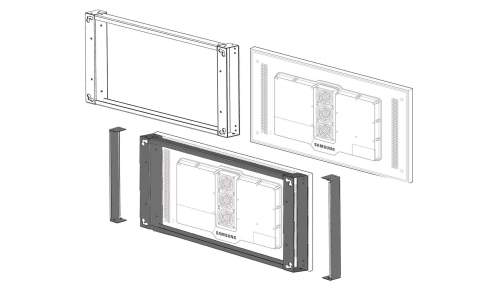

Easy Installation

The screens of the SF-600 series are delivered with a comfortable and sturdy wall mount. The bracket ensures a compact connection with the wall and protects the device from theft at the same time. For this purpose, an anti-theft cover was attached.



Product description SF-600 46" SF-600 55"
Screen diagonal 116,8 cm (46") 138,7 cm (55")
Dimensions (WxHxD) 1069.0 x 623.6 x 85.0 mm 1260.6 x 731.4 x 85.0 mm
Active Display Area (W x H) 1018.08 x 572.67 mm 1209.60 x 680.40 mm
Operating temperature -30 °C to +50 °C -30 °C to +50 °C
Protection class IP56 IP56
Humidity 10.0 % ~ 100.0% (Non-condensing) 10.0 % ~ 100.0% (Non-condensing)
Sensors Ambient Sensor -Auto Brightness, Temperature Ambient Sensor -Auto Brightness, Temperature
Typical energy consumption (in Western Europe) 193 W 267 W
Power consumption during operation (max) 468 W 554 W
Energy efficiency class (LED monitor) D D
Energy consumption sleep mode / off 20 - 50W 20 - 50W
Weight (Display) 40,5 kg 52,6 kg
Weight (incl. Wallmount) 54,1 kg 67,0 kg
Colour black black
Panel Type a-si TFT/S-VA a-si TFT/S-VA
LCD backlight technology Direct LED Direct LED
Resolution 1920 x 1080 1920 x 1080
Brightness 2500 nit / cd/m² 2500 nit / cd/m²
Viewing angle 178 degrees 178 degrees
Operating time 24/7 24/7
Display format 1080p (FullHD) 1080p (FullHD)
Video input formats 720p, 1080i, 1080p 720p, 1080i, 1080p
Aspect ratio of the image 16:9 16:9
Video interface HDMI HDMI
Other Interfaces Ethernet (LAN), WiFi Ethernet (LAN), WiFi
Time switch (switching on and off) individual day timer individual day timer
TV tuner No tuner No tuner
Speaker system without speakers without speakers
Remote control Remote control with PIN Remote control with PIN
Power supply 230 V 230 V
Environmental protection standards (LED monitor) ENERGY STAR ENERGY STAR
Manufacturer's warranty 3 years warranty (Display unit) 3 years warranty (Display unit)
Packaging Display (L x T x H) 1156 x 713 x 200 mm 1358 x 845 x 230 mm
Packaging Display and Wallmount (WxHxD) 1156 x 713 x 200 & 1238 x 622 x 38 mm 1358 x 845 x 230 & 1238 x 622 x 38 mm
Packaging weight incl. Wallmount & Connection Kit 57,6 kg 69,8 kg

CE-COMPLIANCE

CERTIFICATES

EMC
EN 5503 2 :012
EN 5502 4:2010
EN 6100 0-3-2: 2014
EN 6100 0-3-3:2013
EN 301 489-1 V2.1.1
EN 301 489-17 V3.1.1

EMC Safety
EN 60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 62311:2008

Radio
EN 300 328 V2.1.1
EN 301 893 V1.8.1

Solar Monitoring

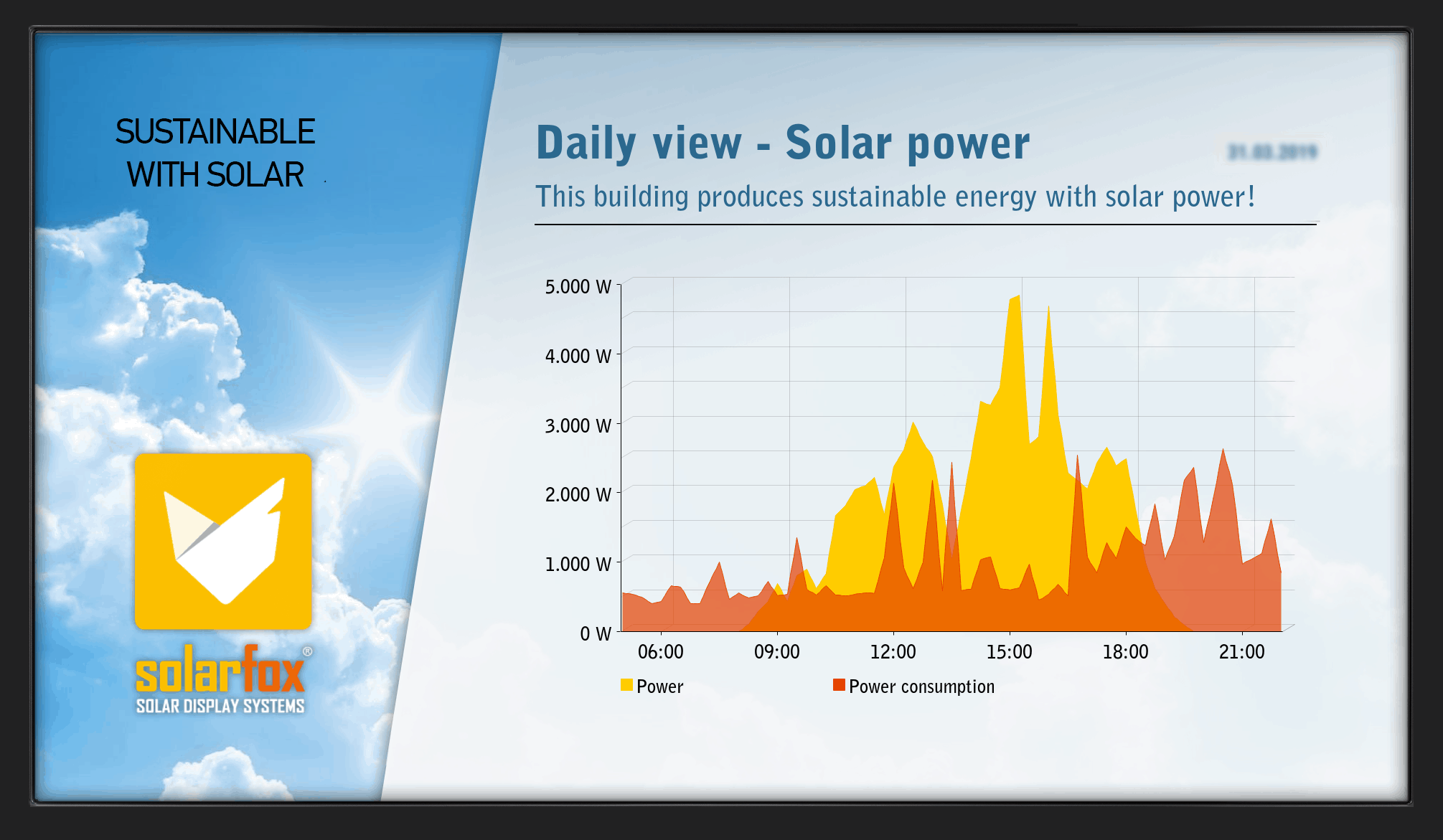

Public solar displays complementing well-known solar monitoring systems for photovoltaic plants and facilities.

Innovative operating concept

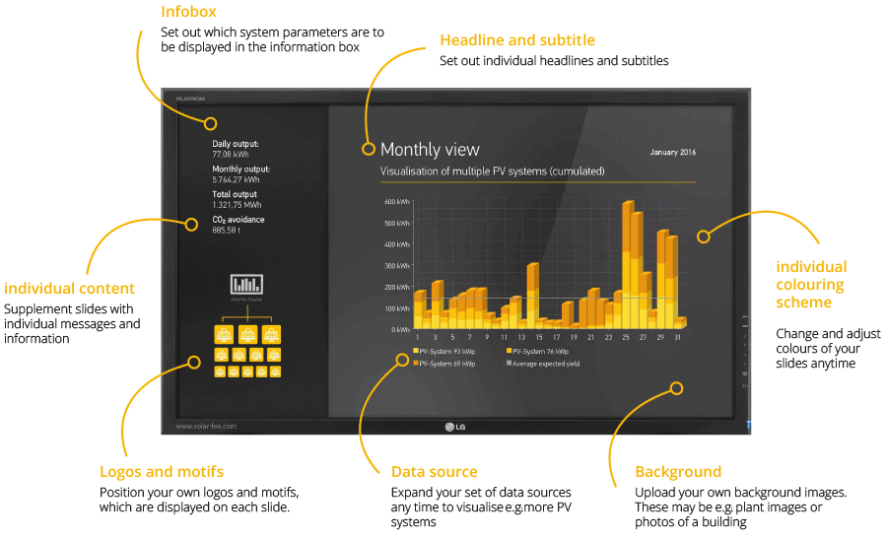

Change the content and adjust the appearance om your displays with a few clicks - any time at will.
