SOLAR LARGE DISPLAYS FOR INDOOR AREAS

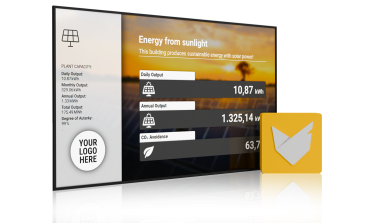

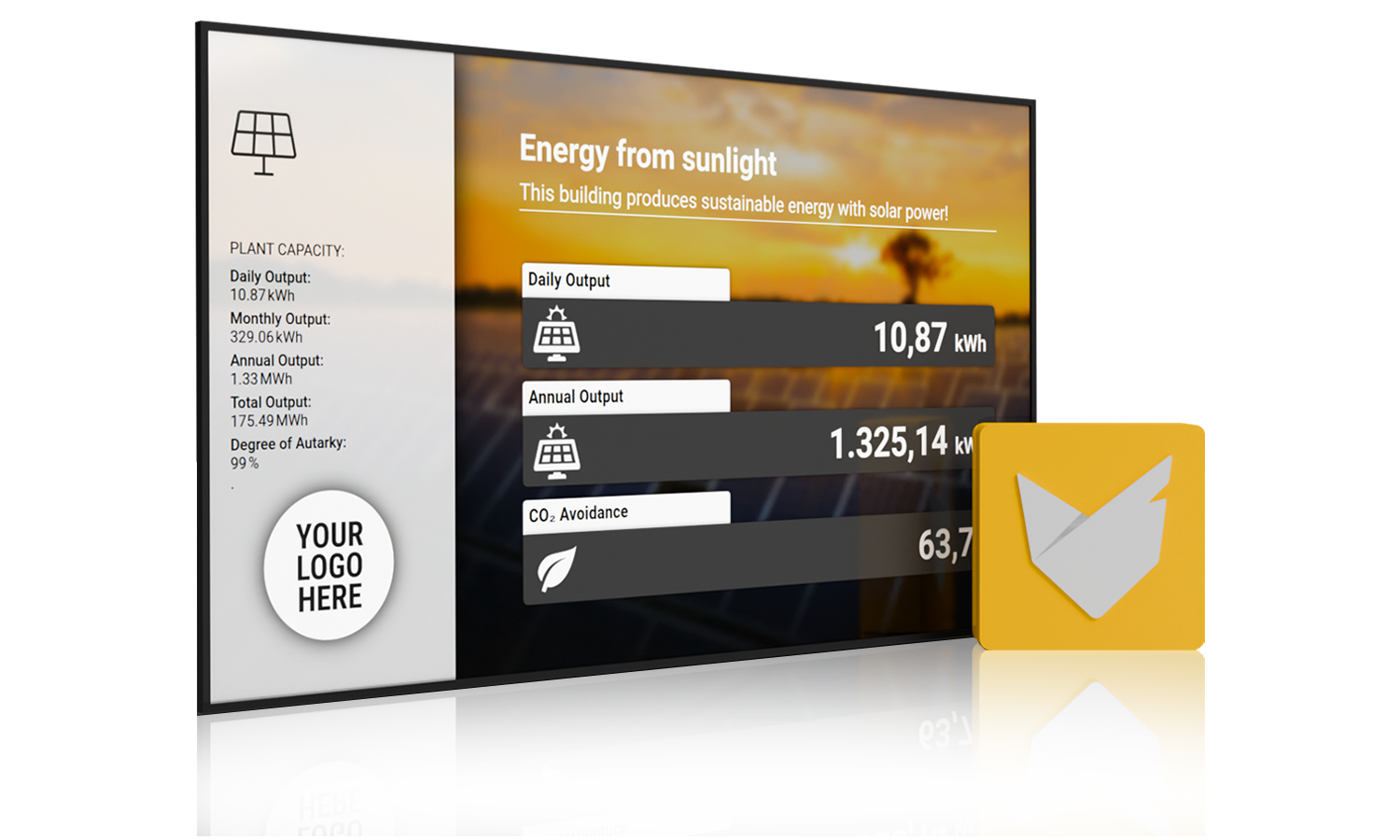

Solarfox® SF-100 Series
Areas of application
The SF-100 series is designed for indoor installation and sets itself apart through robust hardware and a basic range of functions. The displays can be operated up to 10 hours daily or turned on and off via a time switch function.
Product scope
- LED display
- Built-in control computer SC-1000 with software
- 15° tilting wall mount
- Cable and accessories
- Internet connection (LAN)
- Online management
- Individual content and information
Technical data
| Product description | SF-100 24" | SF-100 32" |
|---|---|---|
| Diagonal measurement | 61 cm (24") | 81 cm (32") |
| Dimensions (LxDxH) with wall mount | 55.4 x 7.9 x 33.2 cm | 74 x 13.5 x 43.5 cm |
| Power consumption during operation | 20-24 W | 35-50 W |
| Energy efficiency class | A | B |
| Energy consumption / year (8h per work day) | 44,7 kWh | 66,9 kWh |
| Electricity costs per year (€0.25 per kWh)* | 11,18 € | 16,72 € |
| Weight with wall mount | 3.6 kg | 6.5 kg |
| Colour | Black | Black |
| Technology | IPS | IPS |
| LCD backlight technology | LED | LED |
| Resolution | 1920 x 1080 | 1366 x 768 |
| Service life | 50.000 h | 30.000 h |
| Brightness | 250 cd/m² | 240 cd/m² |
| Viewing angle | 178 degrees | 178 degrees |
| Operating time | 10/7 | 10/7 |
| Display format | 1080p (FullHD) | 720p (HD-ready) |
| Video input formats | 720p, 1080i, 1080p | 720p |
| Aspect ratio of the image | 16:9 | 16:9 |
| Video interface | HDMI | HDMI |
| PC interface | - | - |
| Time switch (switching on and off) | - | daily individual timer |
| TV tuner | No Tuner | DVB-C, DVB-C HD, DVB-T |
| Speaker system | No speakers | 2 speakers (20 Watts) |
| Speaker output | Yes, jack | Yes, 2 ports |
| USB port | Yes, 2 | Yes, 1 |
| Remote control | - | Remote control |
| Power supply | 100/240 V | 100/240 V |
| Environmental protection standards | ENERGY STAR qualified | ENERGY STAR qualified |
| Manufacturer's warranty | 2 year warranty | 2 year warranty |
| Packaging (LxDxH) | 64 x 15 x 40.7 cm | 80 x 14 x 50.5 cm |
| Package weight | 4.4 kg | 8 kg |
(* At an average use of 8 hours per day on 225 working days.)
Application examples
